Tungsten Carbide Replacement Scoring Cutting Wheel
Description

products introduced

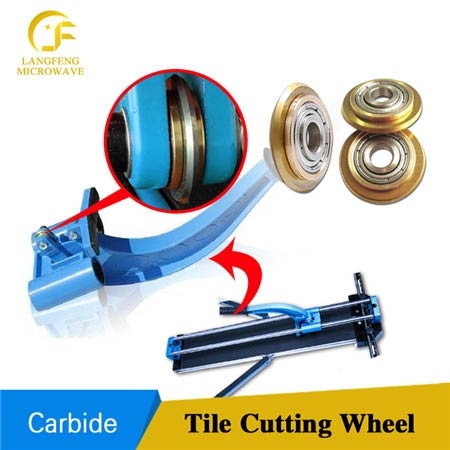

Manual Tile Cutter Tungsten Carbide Replacement scoring tile cutting wheels products details

Manual Tile Cutter Tungsten Carbide Replacement scoring tile cutting wheels, is using an ultra-fine tungsten carbide, cobalt and other metal and metal carbide powder produced by the method of powder metallurgy an ultra-fine grain cemented carbide cutter wheel, inner hole using precision inner hole grinding machine fine grinding. The two sides use precision surface grinding machine processing, cutting edge using a special blade after 12 Seiko manufacturing process, the blade surface processing special wear-resistant material coating, to create high-precision cutting, cutting edge appearance, long life of the fine blade.


Changsha Langfeng metallic material Co., Ltd Manual Tile Cutter Tungsten Carbide Replacement scoring tile cutting wheels products’ advantages:

Using high purity ultra fine WC powder and cobalt powder as raw materials to ensure carbide tile cutter wheels quality;
The company's original carbide additive application technology, make the alloy grain densification;
Unique sintering technology to ensure the various properties of cemented carbide glass cutter knife wheel is stable.



Changsha Langfeng metallic material Co., Ltd produced Manual Tile Cutter Tungsten Carbide Replacement scoring tile cutting wheels, using flange bearing, the whole circle precision welding process, knife wheel in the 5-10 kilograms of pressure to do destructive testing, Continuous cut in the same tile line, can be achieved without falling apart, not loose, increase the cutting life several times. Can be cut microcrystalline stone, do not collapse, line straight, cutting life up to 20, 000 meters.



products application

Manual Tile Cutter Tungsten Carbide Replacement scoring tile cutting wheels suitable for all kinds of hard polishing brick, glazed pottery, prevent slippery floor tile, exterior wall steel brick, etc. linear cutting and angle cutting. Product line straight, high wear resistance, not collapse edge, is not afraid of heavy, with bearing can be under pressure from the center of gravity uniform motion, reduce friction, make the product service life increase. Tile cutter wheels can cutting 2-22mm thickness tiles, up to 20000m, the cutting tool edge is the best at present.

Manual Tile Cutter Tungsten Carbide Replacement scoring tile cutting wheels products applications

Specification

products quality index of typical

Our factory popular size : 22x6x6mm,the thickest of blade thickness: 2.2mm,2.8mm, Custom size can according to customer requirements.

Grade

Hardness (HRA )

Density (g/cm3 )

Cutting life

LF-C1

≥91.5

14.8

20000m
