Tungsten Carbide Replacement Scoring Cutting Wheel
Description
Introduction:

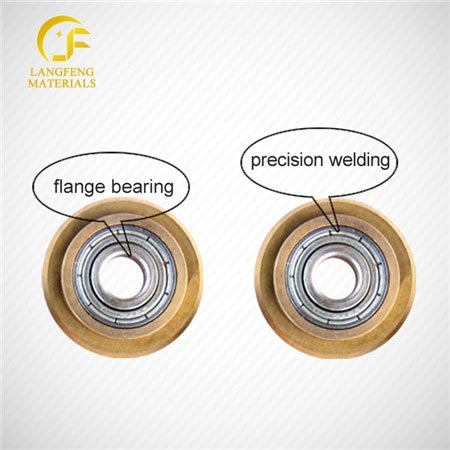

Replacement wheels for all brands;
Tungsten carbide scoring wheels.
Full sizes for regular tile & glass tile.
maximum precision and resistant to wear.
Scoring wheels are sold individually

Size:
Type Basic size (mm ) Grade

Outside

diameter(OD)

Inside

diameter (ID)

Thickness Tolerance Angle C1
Service life (≥m )
Φ22×Φ14×2.6 22 14 2.6 ±0.05

90°

100°

110°

120°

10000
Φ22×Φ14×2.0 22 14 2 ±0.05
Φ22×Φ13×2.0 22 13 2 ±0.05
Φ22×Φ12×2.2 22 12 2.2 ±0.05
Φ22×Φ10.5×2.0 22 10.5 2 ±0.05
Φ22×Φ6×4.6 22 6 4.6 ±0.05
Φ22×Φ6×2.0 22 6 2 ±0.05
Φ18×Φ6×3.0 18 6 3 ±0.05
Φ18×Φ6×3.8 18 6 3.8 ±0.05
Φ16×Φ6×4.9 16 6 4.9 ±0.05
Φ16×Φ6×3.0 16 6 3 ±0.05
Φ16×Φ6×2.0 16 6 2 ±0.05
Φ16×Φ6×1.5 16 6 1.5 ±0.05
Φ16×Φ4×3.0 16 4 3 ±0.05
Φ15×Φ6×2.9 15 6 2.9 ±0.05
Φ15×Φ6×2.0 15 6 2 ±0.05
Φ15×Φ6×1.5 15 6 1.5 ±0.05
Φ14×Φ6×1.5 14 6 1.5 ±0.05
Φ13.5×Φ6×2.0 13.5 6 2 ±0.05
Φ13.5×Φ6×1.5 13.5 6 1.5 ±0.05
Φ13.5×Φ6×1.0 13.5 6 1 ±0.05
Φ12×Φ3×3.0 12 3 3 ±0.05
Φ10×Φ4×3.0 10 4 3 ±0.05
Φ8×Φ1.5×1.1 8 1.5 1.1 ±0.05

Can be produced according to customer requirements



Grade Hardness (HRA ) Density (g/cm3 ) Cutting life
C1 ≥91.5 14.8 ≥10000m



Specification

Item name

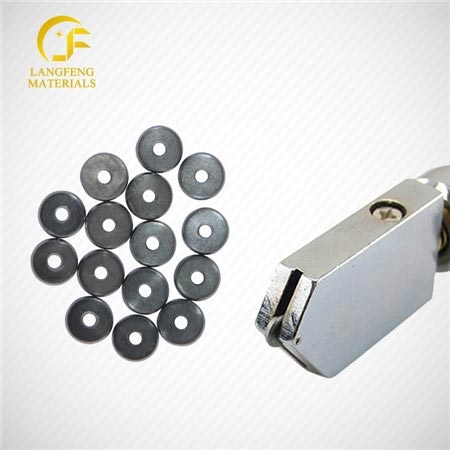

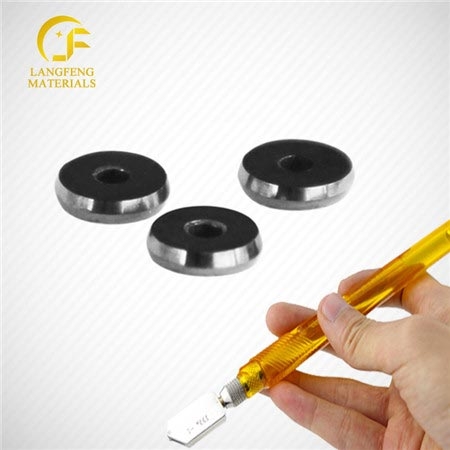

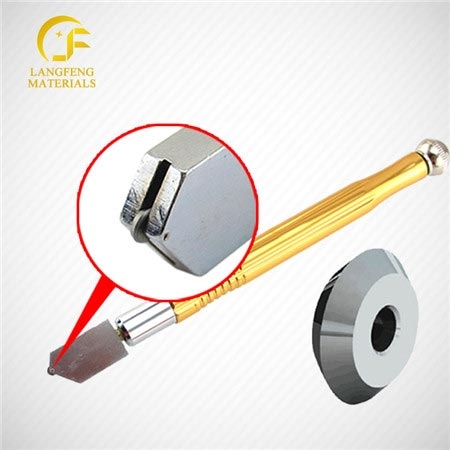

 Tungsten carbide replacement scoring wheel for manual glass cuter

material

tungsten carbide

surface treatment

mirror polished, titanium plated to the wheel, zinc plated to the bar, etc.as your requirements.

Size

See below chart

MOQ

500 pieces

Packing

Inner package: plastic tube

Outer package: paper carton

package can be customized.

Usage

manual tile cutter

Additional

OEM orders are welcome

Remark

All the glass cutter wheels must be inspected strictly with the ultrasonic.

high density,high wear and impact resistance,which lead them a long life
