Steel Bonded Titanium Carbide MaterialCurrent Position : Home > Products > Steel Bonded Titanium Carbide Material > GT35XZ Titanium Carbide Based Chrome- Molybdenum -Steel Carb...
Steel Bonded Titanium Carbide Material
Description

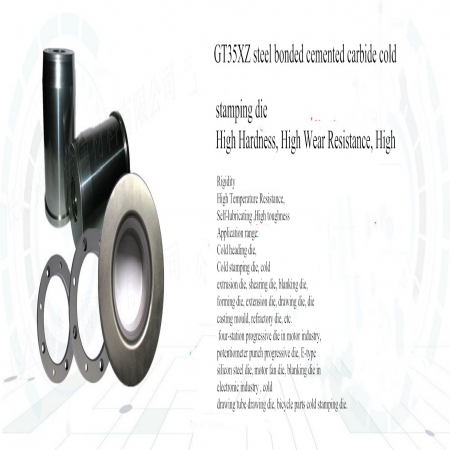

GT35XZ Titanium Carbide Based Chrome- Molybdenum -Steel Carbide Alloy Wear-Resistant Material

High-end Wear-Resistant and Impact-Resistant Self-Lubricating Cold Stamping Precision Die



Product transaction information:

Price: Quotation Based on Size

Stock Ability: 1500KGs;

Transportation: Air or Sea shipment;

Payment method: Shipment upon the receipt of payment;

MOQ: 5 kg

Lead Time for Customized Size: 15-30 days;

After-Sale Service: Replace the inferior parts unconditionally



Product core advantages:

1. Standardized production process and process design;

2. Comprehensive enterprise standards;

3. Independent research and development of high-purity raw materials;

4. core technology of formulating high-end material;

5. Provide wear solutions.



Basic product introduction:

Cold stamping die made of GT35XZ Titanium carbide based Chromium-Molybdenum Steel Bonded Carbide is a high-precision self-lubricating mold with chrome-molybdenum steel as the binder phase, titanium carbide as the hard phase. It can be machinable, cutting, electrical machining, heat treatable, weldable, and forging. Hunan WISE New Material Technology Co.,Ltd.



Features:

Cold stamping die made of GT35XZ Titanium carbide based Chromium-Molybdenum Steel Bonded Carbide is of low density, high hardness, high wear resistance, high rigidity, good high temperature resistance, good self-lubricating performance, good impact resistance and anti-thermal fatigue resistance, high modulus of elasticity and rigidity, excellent damping characteristics, low coefficient of friction and thermal expansion coefficient, good self-lubricating properties and good resistance to oxidation, corrosion and high temperature with a low heat treatment deformation rate, it is a good rigid seismic tool and parts. It can be repaired, welded and machined.



Technical Specification:

Item

GT35XZ

Hardness

68-70HRC

Bending strength

1800N/mm2

Density

6.50g/cm3

impact toughness

8.5 J/cm2



Product application range:

High-end wear-resistant and impact-resistant self-lubricating cold stamping precision dies are widely used in cold heading dies, cold stamping dies, cold extrusion dies, shearing dies, blanking dies, forming dies, extension dies, drawing dies, die-casting molds, refractory dies.four-station progressive die in motor industry, potentiometer punch progressive die, E-type silicon steel die, motor fan die, blanking die in electronic industry , cold drawing tube drawing die, bicycle parts cold stamping die.



Product application case:

High-end wear-resistant and impact-resistant self-lubricating cold stamping precision dies have been well tested and verified in one auto parts factory, and their service life has been greatly improved. The service life comparison is shown in the table below.

name

Concave Die

Process material

 stainless steel sheet with 2-3mm thickness

Service life

Powder metallurgical tool steel S390 stamping precision die: 10000times

Service life

Cold stamping die made of GT35XZ Titanium carbide based Chromium-Molybdenum Steel Bonded Carbide:40000 times

Application

Auto parts manufacturer



The picture of the first repair after 40,000 use of the Cold stamping die made of GT35XZ Titanium carbide based Chromium-Molybdenum Steel Bonded Carbide is as follows:





As can be seen from the picture: there is only very thin rub on the repair surface.

Hunan WISE New Material Technology Co.,Ltd.

1, Service life of Cold stamping die made of GT35XZ Titanium carbide based Chromium-Molybdenum Steel Bonded Carbide is about several times, dozens of times as that of high chromium tool steel die. Due to its good self-lubricating properties, it can get better performance  in extrusion die applications than cemented carbide, especially in the extrusion of viscous metal materials such as copper alloys and stainless steel.

2, Cold stamping die made of GT35XZ Titanium carbide based Chromium-Molybdenum Steel Bonded Carbide in the application of refractory molds, the mold life is increased by a dozen times, dozens of times. Previously refractory molds are mainly produced by carbonitriding low carbon steel or cast iron and high chromium cast iron. At the same time, cold stamping dies made of GT35XZ Titanium carbide based Chromium-Molybdenum Steel Bonded Carbide improve the precision of refractory sheets and improves product quality.





Enterprise Standards - Production Process and Product Quality Technical Standards:

 Hunan WISE New Material Technology Co.,Ltd.
